Cassida
The CASSIDA food grade lubricants represent an excellent assortment of lubricants for all applications in the food and beverage industries as well as in related industries such as the animal feed, pet food, packaging and pharmaceutical industries. Should you be unable to find your particular application in this overview, our Food Division experts will be happy to assist you with customized solutions for your individual requirements. Here you can contact us directly!

The food and beverage industries as well as related industries set the highest requirements, which also have to be fulfilled by the lubricants used. Consumer protection is crucial in this regard. In addition, enabling smooth manufacturing processes as well as high effectiveness and long component lifetimes are top priorities for us. In order to live up to all these requirements, our high-tech lubricants not only offer you the best quality, but also the highest possible safety standards.

The excellent quality of the CASSIDA products can also be seen in the numerous OEM approvals by well-known manufacturers of production and manufacturing plants with whom we collaborate already during the development phase of our products.

Cassida Greases
Rainbow Chicks : jQuery Carousel Otter : jQuery Ajax Carousel
CASSIDA GREASE RLS 000 · 00 · 0 · 1 · 2
High performance regular load synthetic base fluid aluminium complex greases.

Main application: For use on bearings, bushings and linkages on food manufacturing equipment. CASSIDA GREASE RLS 0 and 00 are particulary recommended for centralised lube systems or other similiar systems where an NLGI 2 grease may be difficult to dispense.

    Typical Viscosity
at 40 °C [mm²/s]
Typical Viscosity
 at 100 °C [mm²/s]
NLGI-Grade
  CASSIDA GREASE RLS 000 100 13 <000
  CASSIDA GREASE RLS 00 100 13 00
  CASSIDA GREASE RLS 0 150 18 0
  CASSIDA GREASE RLS 1 150 18 1
  CASSIDA GREASE RLS 2 150 18 2

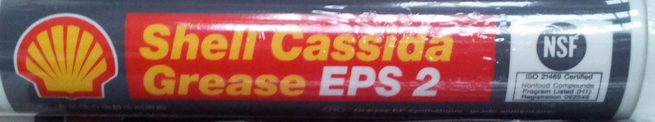

CASSIDA GREASE EPS 00 · 1 · 2
High performance extreme pressure aluminium complex greases with synthetic base fluid.

Main application: For use on bearings, bushings and linkages on food manufacturing equipment, particulary where there are high pressure and loads, high temperatures and water spray. CASSIDA GREASE EPS 00 is especially recommended for centralised lube sytems and enclosed gears.

    Typical Viscosity
at 40 °C [mm²/s]
Typical Viscosity
 at 100 °C [mm²/s]
NLGI-Grade
  CASSIDA GREASE EPS 00 220 25 00
  CASSIDA GREASE EPS 1 220 25 1
  CASSIDA GREASE EPS 2 220 25 2
CASSIDA GREASE HDS 00 · 2
High performance high viscosity synthetic base fluid heavy duty aluminium complex greases.

Main application: For use on bearings, bushings and linkages on food manufacturing equipment, particulary where slower speeds, high pressure and loads, high temperatures and water spray are present. CASSIDA GREASE HDS 00 is recommended for open gears and centralised lube systems.

    Typical Viscosity
at 40 °C [mm²/s]
Typical Viscosity
 at 100 °C [mm²/s]
NLGI-Grade
  CASSIDA GREASE HDS 00 800 68 00
  CASSIDA GREASE HDS 2 800 68 2
CASSIDA GREASE GTS 2 · GTS Spray
Specialty extreme pressure calcium sulphonate complex greases with synthetic base fluid. Excellent extreme pressure, anti-wear and corrosion  prevention properties.

Main application: For use on bearings of electric motors, pumps, conveyors, mixers, gear units and bearings.

*without propellant

    Typical Viscosity
at 40 °C [mm²/s]
Typical Viscosity
 at 100 °C [mm²/s]
NLGI-Grade
  CASSIDA GREASE GTS 2 50 8,6 2
  CASSIDA GREASE GTS Spray 50* 8,6* 2*
CASSIDA GREASE GTX 0 · 2
High performance extreme pressure calcium sulphonate complex grease with synthetic base fluid. Excellent extreme pressure, anti-wear and corrosion prevention properties.

Main application: For use on bearings of electric motors, pumps, conveyors, mixers, gear units and bearings. Heavy-loaded and shock-loaded applications with low to medium speed bearings operating up to 180 °C, such as machines used to process pet food and animal feed.

    Typical Viscosity
at 40 °C [mm²/s]
Typical Viscosity
 at 100 °C [mm²/s]
NLGI-Grade
  CASSIDA GREASE GTX 0 400 40 0
  CASSIDA GREASE GTX 2 400 40 2
CASSIDA GREASE HTS 2
Inorganically thickened grease with synthetic base fluid.

Main application: Suitable for applications on food manufacturing equipment where high temperatures (peak 220 °C) can be experienced.


    Typical Viscosity
at 40 °C [mm²/s]
Typical Viscosity
 at 100 °C [mm²/s]
NLGI-Grade
  CASSIDA GREASE HTS 2 400 40 2
CASSIDA GREASE LTS 1
High performance aluminium complex grease with low viscosity synthetic base fluid.

Main application: For use on bearings, bushing and linkages on food manufacturing equipment. Particulary recommended for use in cold storage situations with temperatures down to -50 °C.


    Typical Viscosity
at 40 °C [mm²/s]
Typical Viscosity
 at 100 °C [mm²/s]
NLGI-Grade
  CASSIDA GREASE LTS 1 20 4,5 1
CASSIDA GREASE MD 2
High performance silicone based speciality grease specially developed for the lubrication and sealing of taps, valves and fittings with EPDM seals. Suitable for use with other seal materials normally used in food machinery lubrication systems. Good resistance to hot water, steam and disinfectant solutions.

Main application: Taps, flow meters and fittings used for the handling of water, drinks and beer. Seals on autoclaves and sterilisers. Suitable for continuous operation at temperatures up to 180 °C and short term exposure to temperatures not exceeding 250 °C.


    Typical Viscosity
at 40 °C [mm²/s]
Typical Viscosity
 at 100 °C [mm²/s]
NLGI-Grade
  CASSIDA GREASE MD 2 650 250 2-3
CASSIDA GREASE FC 1 · 2
High performance high temperature grease especially developed for the lubrication of bearings and seals working at extreme operating temperatures, aggressive environments and for filled for life conditions in food and beverage processing machinery. Effective anti-corrosion prevention characteristics. Excellent elastomer compatibility. Suitable for applications where components might be exposed to reactive chemicals and gases; chemically inert or non-reactive in contact with strong acids, alkalis and halogens. Excellent elastomer compatibility.

Main application: Plain/roller bearing elements, joints, linkages and mechanical seals which are exposed to solvents, chemically aggressive materials and radiation. Suitable for continuous operation at temperatures up to  260 °C and short term exposure to temperatures not exceeding 300 °C.


    Typical Viscosity
at 40 °C [mm²/s]
Typical Viscosity
 at 100 °C [mm²/s]
NLGI-Grade
  CASSIDA GREASE FC 1 510 47 1
  CASSIDA GREASE FC 2 510 47 2
CASSIDA PASTE AP
Synthetic assembly paste for food & beverage processing equipment.

Main application: Assembly paste with an extremely large range of applications, e.g. screw paste for highalloy steels to optimize the tightening torque, mounting and pressing of bearings and disks, wheels and bolts, lubrication of adjusting mechanisms as well as for drifting, bending, punching, pressing and stamping.


    Typical Viscosity
at 40 °C [mm²/s]
Typical Viscosity
 at 100 °C [mm²/s]
NLGI-Grade
  CASSIDA PASTE AP 85 12 1
